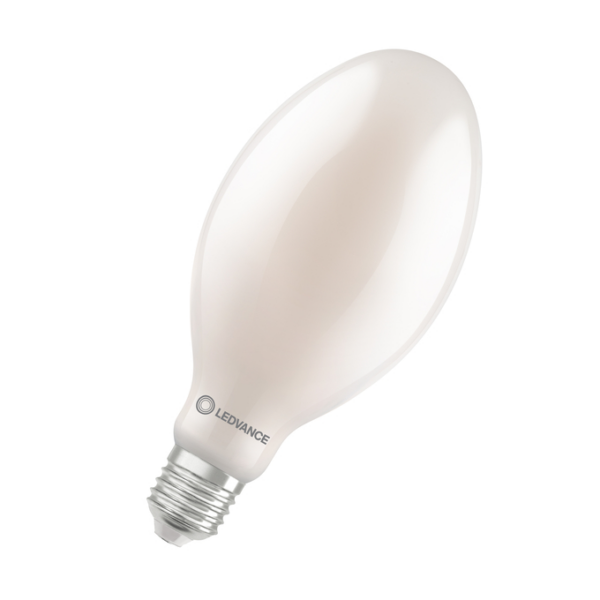

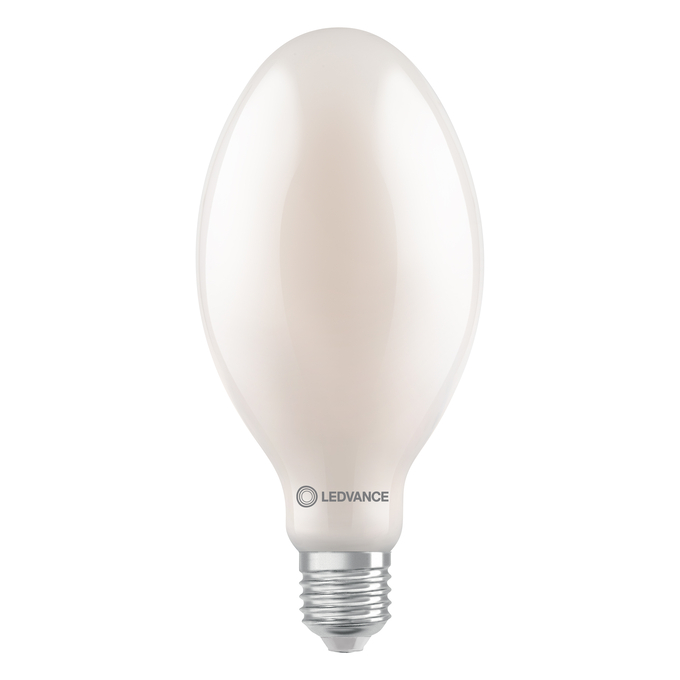

HQL LED FILAMENT V 8100LM 60W 827 E40

Product benefits Same design as traditional HQL lamps with frosted, ellipsoid full glass bulb Full use of reflector of existing luminaire thanks to 360 degree beam angle Saves up to 78 % energy when used as replacement for mercury vapor lamps (HQL) Instant 100 % light, no warm-up time Areas of application Streets Area lighting Pedestrian zones Parks Outdoor applications only in suitable luminaires Product features Replacement for HQL: Suitable for operation with conventional control gear (CCG) for HQL or 230 V mains Replacement for other HID: Suitable for operation with line voltage without control gear Power factor: 0.9 Type of protection: IP65 Surge protection: up to 2 kV (L-N) Safety advice Not suitable for operation with ignitors. Operation on the capacitor can lead to a reduction of the power factor of the system. When installed horizontally, the tc point of the lamp is located on the top side of the lamp. Use in tight luminaires and luminaires with tight reflectors not recommended. Only suitable for temperatures of up to 50 °C inside of the luminaire. Use in tight luminaires and luminaires with tight reflectors not recommended. All electrical connections must be made by a qualified person. Electrical data Nominal wattage 60 W Construction wattage 60.00 W Nominal voltage 220…240 V Operating mode CCG, AC Mains Claimed equiv. conventional lamp power 250 W Nominal current 265 mA Type of current AC Inrush current 12.2 A Operating frequency 50/60 Hz Mains frequency 50/60 Hz Max. lamp number on MCB B10 A 11 Max. lamp number on MCB B10 A – CCG without compensation 17 Max. lamp number on MCB B10 A – CCG with compensation 5 Max. lamp number on MCB B16 A 18 Max. lamp number on MCB B16 A – CCG without compensation 28 Max. lamp number on MCB B16 A – CCG with compensation 9 Total harmonic distortion 10 % Power factor λ > 0.90 Surge capability (L-N) 2 kV Photometrical data Luminous flux 8100 lm Nominal useful luminous flux 90° 8100 lm Luminous efficacy 135 lm/W Lumen main.fact.at end of nom.life time 0.70 Light color (designation) Warm White Color temperature 2700 K Color rendering index Ra 80 Light color 827 Standard deviation of color matching ≤6 sdcm Rated LLMF at 6,000 h 0.80 Flickering metric (Pst LM) 1 Stroboscope effect metric (SVM) 0,4 Light technical data Beam angle 360 ° Warm-up time (60 %) ‹ 0.50 s Starting time < 0.5 s Dimensions & Weight Overall length 260.00 mm Diameter 120.00 mm Maximum diameter 120 mm Product weight 300.00 g Temperatures & operating conditions Ambient temperature range -20… 50 °C 1) Maximum temperature at tc test point 90 °C 1) Temperature surrounding the lamp – for enclosed luminaires: temperature inside of the luminaire Lifespan Lifespan L70/B50 at 25 °C 25000 h Number of switching cycles 100000 Lumen maintenance at end of service lifetime 0.70 Rated lamp survival factor at 6,000 h ≥ 0.90 Additional product data Base (standard designation) E40 Mercury content 0.0 mg Mercury-free Yes Capabilities Dimmable No SKU: 1209728 Categories: Bollards, Bulbs, Commercial, High Bay, Light Sources, Outdoor, Road Tags: 2700k, 827, E40, HQL Brand: LEDVANCE
