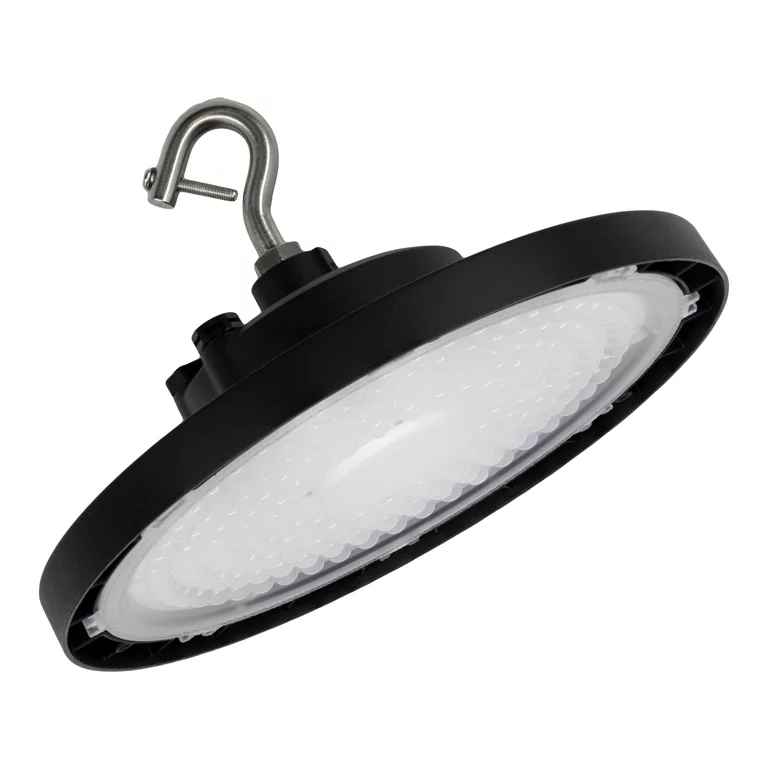

HB V 95W 840 60DEG IP66

LED HIGH BAY 95W 4000k IP66 EAN:4099854067891 ELECTRICAL DATA Nominal consumption 95.00W Nominal voltage 220…240V Network frequency 50…60 Hz Rated current 470,000mA Activation current 35.2 A Starting current time T h50 360 µs Maximum number of luminaires per miniature circuit breaker B16 5 Max. no. of luminaires per fuse C10 A 5 Max. no. of luminaires per fuse C16 A 9 Power factor λ ≥ 0.95 Total harmonic distortion of current < 20 % Insulation class I Feeding method Integrated LED driver Photometric data Luminous flux 16700 lumens Luminous efficiency 176 lm/W Color temperature 4000K Color rendering Cool white Color rendering index Ra 80 Standard deviation of color fidelity 5 sdcm Photobiological safety group EN62778 RG1 Beam angle 60 ° DIMENSIONS & WEIGHT Diameter 246.00 mm Height 120.00 mm Product weight 1100.00g MATERIALS & COLORS Product color Black Design Black Frame material Aluminum Cover material Polycarbonate (PC) Glow wire test IEC 60695-2-12 650 °C Mercury content 0.0 mg APPLICATION & FIXING Ambient temperature range -20… 50 °C Storage temperature range -40… 70 °C Connection type Cable, 3-pole IP protection rating IP66 IK protection rating (impact resistance [PIM]) IK10 Dimmable No Type of installation Suspended/Surface mounted Scope Indoor With light source Yes Replaceable light source No Lifetime Shelf life L70/B50 @ 25 °C 100000 hours 1) Lifetime L80/B10 @ 25 °C 96000 hours 1) Shelf life L90/B10 @ 25 °C 49000 hours Number of switching cycles 100000 1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta) CONTROL SYSTEM SKU: 1409000 Categories: Ceiling, Ceiling, Commercial, Domestic, High Bay, Outdoor Tags: 4000k, 60 degree, 840, 95w, campana, high bay, Highbay, industrial, ip66, kampana, led, storage, warehouse Brand: LEDVANCE
